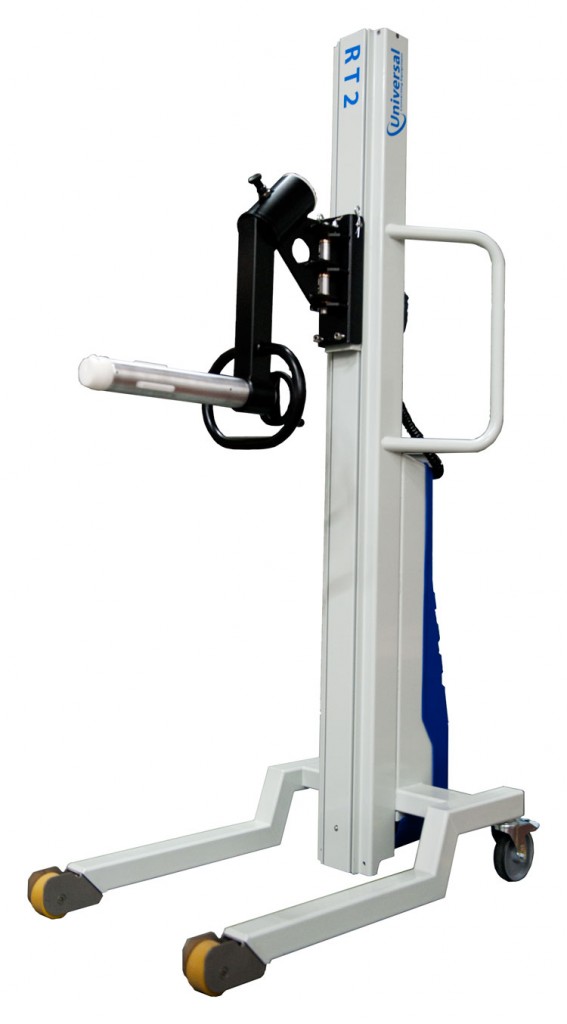

RT2 Roll Handling Trolley

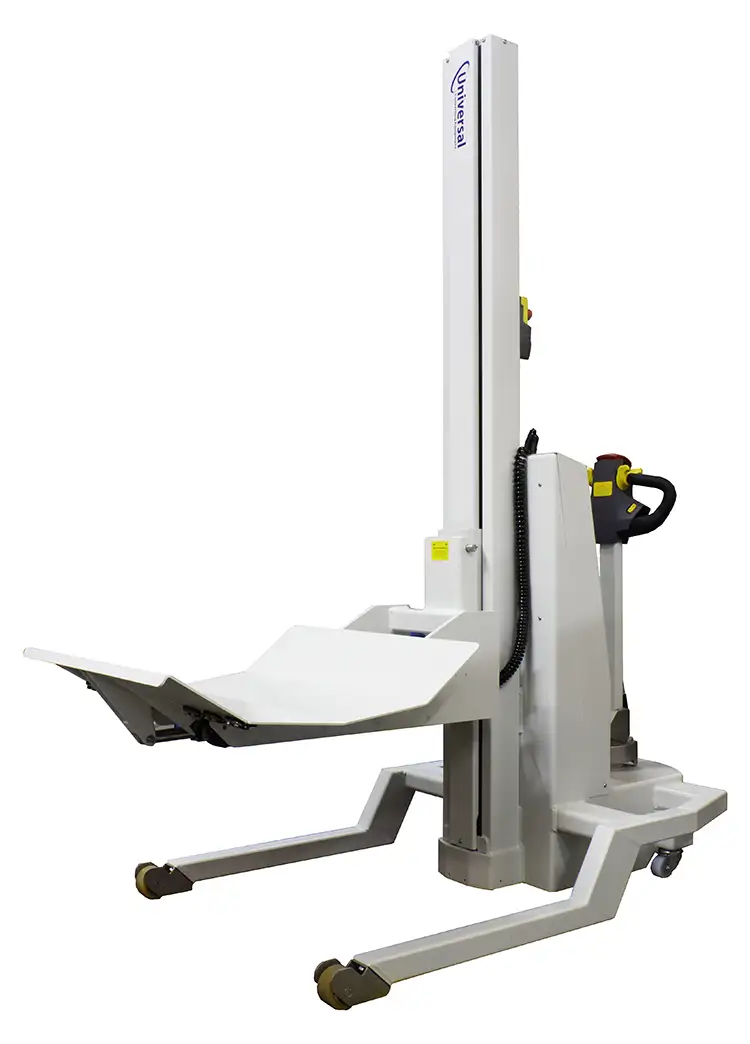

RT4 Roll Handling Trolley
The Universal RT2 is a powerful electric roll handling trolley for safely handling loads of up to 300kg, the RT4 has a load capability of up to 500kg
| Features | RT2 | RT4 |
| Weight Lifting Capacity: | 300kg | 500kg |
| Powerful inbuilt battery and charging unit, with clear battery meter | ✔ | ✔ |
| Braked motor ensuring accurate and safe control | ✔ | ✔ |
| Braked castors | ✔ | ✔ |
| Expanding core gripper for safely holding rolls in transit | ✔ | ✔ |
| Electric drive and hand-held controls (including e-stop) | ✔ | ✔ |
| Roll turner with 350mm steel arm for securely holding large rolls up to 250kg | ✔ | – |
| Simple attachment changeover (shown right) | ✔ | – |
| Motorised transport | – | ✔ |
Productivity
- Roll turning attachment to
safely and effortlessly turn
rolls from vertical orientation
to horizontal, or vice-versa - Multiple attachment option
to suit a wide range of
applications - The RT2 Attachment can be changed in a matter of a few minutes
- Removeable control cradle lip from RT4
High Quality
- Raise and lower controls
(including e-stop) on robust
pendant control - High quality steel or stainless
steel construction - Powerful core-gripper (on
roll turning attachment)
safely holds heavy cores - Optional sealed electronics
Dependable
- Robust design
- No Hydraulics
- Operator friendly safety system compliant with
EN1757-1 (Lifting trolleys)
and EN1175-1 (Machine
safety – Electrical equipment
of machines general
requirements.) - High capacity battery
- Low maintenance
- Worldwide support
Roll Handling Trolley
| Technical Information | RT2 | RT4 | |
| Maximum Roll Width | Standard: Special: | 650m (25″) 850mm (33″) | 1000mm (40″) On Request |
| Maximum Roll Diameter | Standard: Special: | 1000mm (40″) 1250mm (50″) | 1000mm (40″) |
| Maximum Roll Weight: | 300kg (660lb) | 500kg (1100lb) | |
| Maximum Lift Height | Standard: Special: | 1500mm (59″) 2500mm (98″) | 1500mm (59″) 2000mm (80″) |
RT2 Attachments

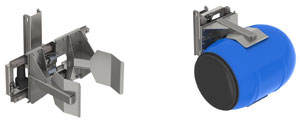

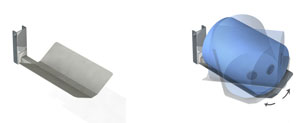

The RT2 is designed to work with many different attachments. Attachments take no more than a few minutes to change and a wide range is available (see options below).

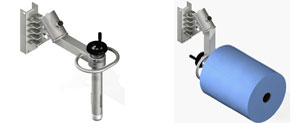

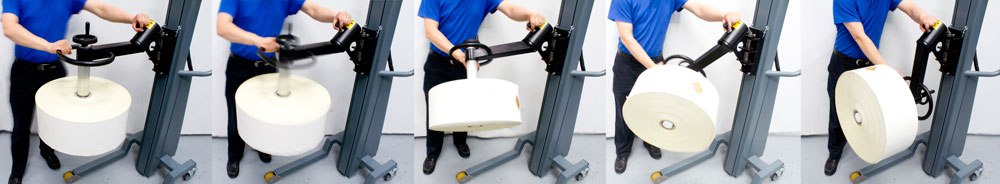

The most popular attachment is the roll turner – the rolls are gripped by an expanding core gripper, the roll turning unit rotates the roll from the core horizontal to the core vertical. The roll turning attachment makes moving rolls from the rewind shafts of a slitter to a pallet (for example) simple, safe and easy.
