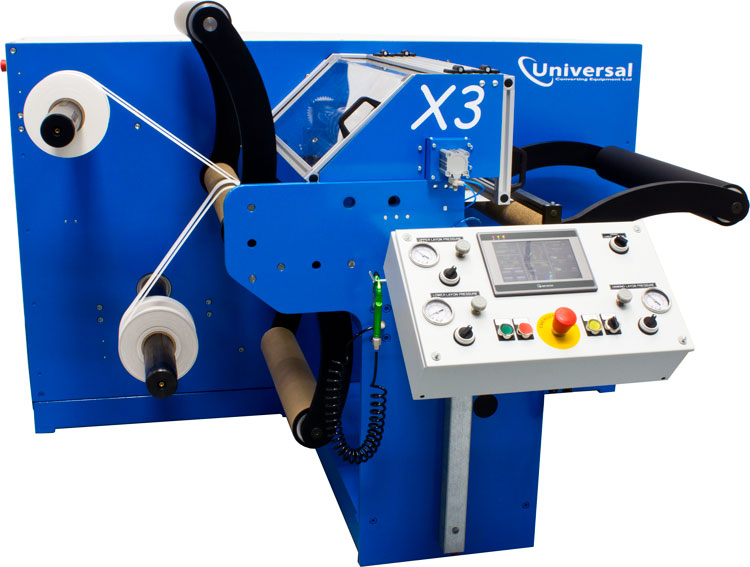

The Universal X3 is a compact slitter with a narrow width, offering capabilities comparable to larger slitter rewinders. Its small footprint, accurate tension control, and high-speed capability make it ideal for narrow-width slitting applications, especially for customers with limited floor space. The X3 features edge line guiding, optional lay-on arms, and differential shafts, with a design that ensures easy and safe access to the cutting section for quick job setups. Its short web path minimizes waste, making it particularly suitable for slitting high-value materials.
The X3 has edge line guiding and can be fitted with lay-on arms and differential shafts as specified. The small footprint and cantilevered shafts make the X3 a popular machine with customers with limited floorspace but require a high-performance slitter rewinder. The cutting section is easily (but safely) accessible making job setups safe and easy for operators.
The short web path makes this machine ideal for slitting high-value materials where wastage needs to be kept to a minimum.
Productivity
- Simple to set up and operate
- Small footprint
- Short web path
- Digital web guiding
- High quality
- Ethernet based OPC server allowing access to machine parameters by SCADA or other management systems
High Quality
- Closed loop, load cell control of rewind tension
- Recipe system to ensure repeatability
- Short distance between knives and rewinds
- Short distance between rollers
Dependable
- Robust design with heavy duty framework
- Only high quality components from global suppliers
- No Hydraulics
- Low maintenance
- Worldwide support
X3 Narrow Width Compact Slitter Technical Information
| Maximum roll width | 24″ | 600mm |
| Maximum roll diameter | 24″ | 610mm |
| Maximum rewind (finish) roll diameter | 24″ | 600mm |
| Minimum finish roll width | > 10mm > 0.39″ |
|
| Slitting options | Razor (option for auto-set) Shear (option for auto-set) Crush |
|
| Maximum speed | 400 m/min (1300 ft/min) | |
Options
- Trim/centre trim removal (razor, shear or crush)
- Vacuum trim extraction
- Razor or Shear slitting
- Coned unwind shaft for processing rolls with crushed cores
- Shaft supports for processing heavy rolls
- Perimeter safety guards (compulsory in Europe)
- Splice table/illuminated inspection table
- Strobe
- Laser-perforation roller/ laser perforator
- Customised centre-module for customers’ process
Materials
- Papers
- Label stock
- Laminates
- Foils
- Films
- Rubber
